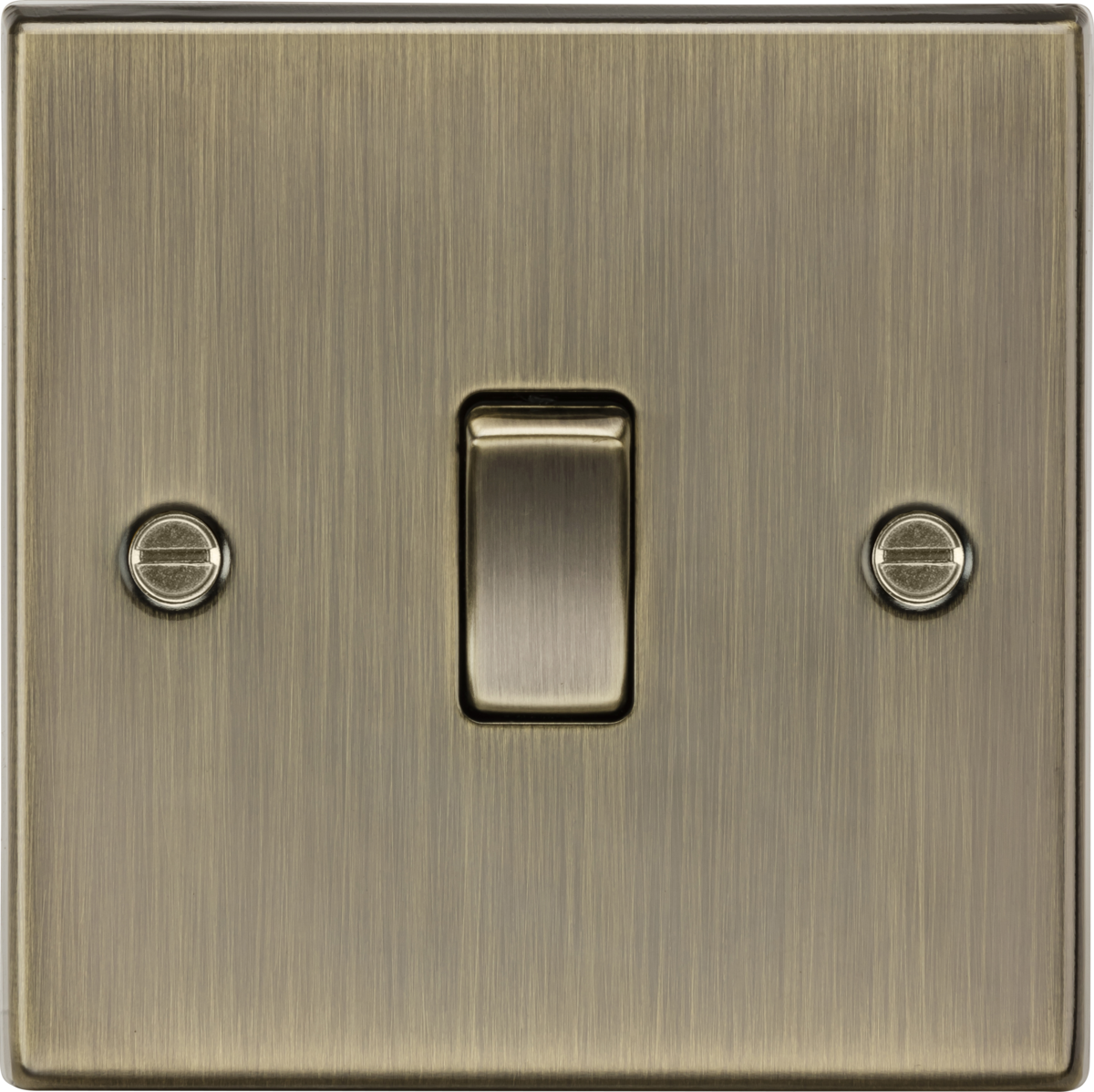

10AX 1G Intermediate Switch - Antique Brass CS12AB MLA

Perfect finishing touch to any modern home, square edge metal design with matching metal rocker. An intermediate switch is used when you have three switches controlling one light. A typical example of this is on a landing. There is a switch at the bottom of the stairs, one at top of the stairs and one at the end of the landing. On this circuit you would need the middle switch to be intermediate (i.e. the one at the top of the stairs) in order for all the switches to function properly.

• 10AX rated
• Intermediate
• Square Edge design with built in gasket
• Certified to EN 60669-1
• Minimum mounting box 16mm

• MLA PART CODE	CS12AB
  DESCRIPTION	10AX 1G Intermediate Switch - Antique Brass
  NET WEIGHT (KG)	0.121
  FINISH	Antique Brass
  DIMENSIONS (MM)	Height - 89 Width - 89 Projection - 10.5
  MINIMUM MOUNTING BOX DEPTH	16mm
  CONSTRUCTION	Construction - Premium grade steel
  IP RATING	IP20
  INPUT VOLTAGE	230V 50Hz
  SWITCH FUNCTION	Intermediate
  EARTH TERMINAL	Yes
  LOAD/MAX. LOAD	10AX
  TERMINAL TYPE	Screw
  TERMINAL CAPACITY	2 x 1.0mm² or 2 x 1.5mm²
  WARRANTY	25year(s)
  MANUFACTURED IN ACCORDANCE WITH	BS EN 60669-1
  ORIGIN OF MANUFACTURE	China
  DECLARATION OF CONFORMITY (HELD ON FILE)	Yes
  EAN	5055832975885
