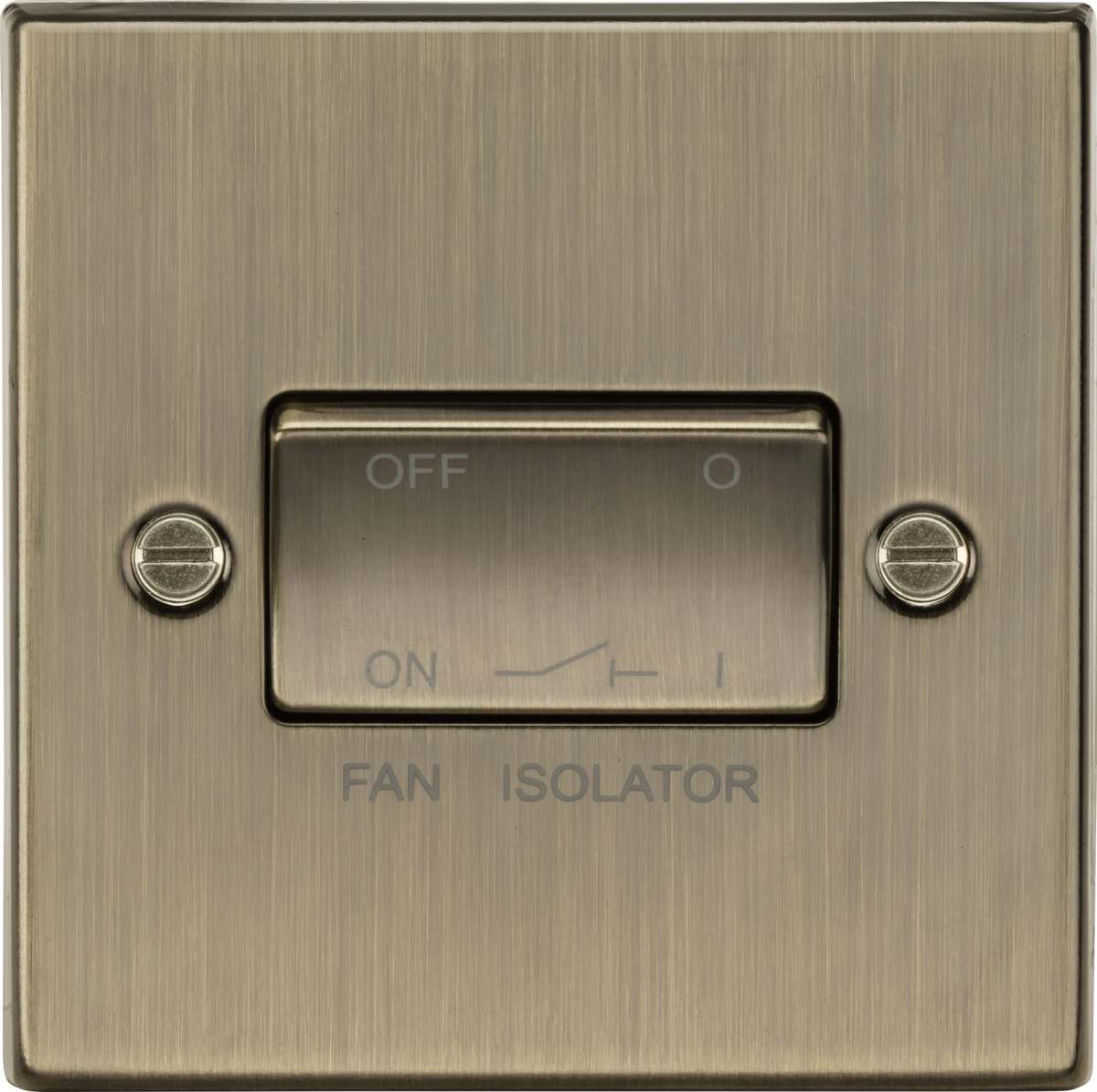

10AX Fan Isolator Switch - Antique Brass CS11AB MLA

Perfect finishing touch to any modern home, square edge metal design with matching metal rocker. Ideal for providing a safe and simple method of isolating fan units in en-suite bathrooms, family bathrooms, utility rooms, store rooms etc. Often the fan unit will be wired into the lighting circuit for convenience and efficiency. With this kind of installation there is often a need to leave the lighting circuit live whilst isolating the fan for maintenance.

• 10AX rated
• Triple Pole
• Square Edge design with built in gasket
• Rated conditional short circuit current (Inc) 1500A
• Certified to EN 60669-1, EN 60669-2-4
• Minimum mounting box 16mm

• MLA PART CODE	CS11AB
  DESCRIPTION	10AX Fan Isolator Switch - Antique Brass
  NET WEIGHT (KG)	0.127
  FINISH	Antique Brass
  DIMENSIONS (MM)	Height - 89 Width - 89 Projection - 10.5
  MINIMUM MOUNTING BOX DEPTH	16mm
  CONSTRUCTION	Construction - Premium grade steel
  IP RATING	IP20
  INPUT VOLTAGE	230V 50Hz
  SWITCH TYPE	Triple Pole
  SWITCH FUNCTION	Fan Isolator
  EARTH TERMINAL	Yes
  LOAD/MAX. LOAD	10AX
  TERMINAL TYPE	Screw
  TERMINAL CAPACITY	2 x 1.0mm² or 2 x 1.5mm²
  ADDITIONAL FEATURES	Triple Pole
  WARRANTY	25year(s)
  MANUFACTURED IN ACCORDANCE WITH	BS EN 60669-1, BS EN 60669-2-4
  ORIGIN OF MANUFACTURE	China
  DECLARATION OF CONFORMITY (HELD ON FILE)	Yes
  EAN	5055832975915
