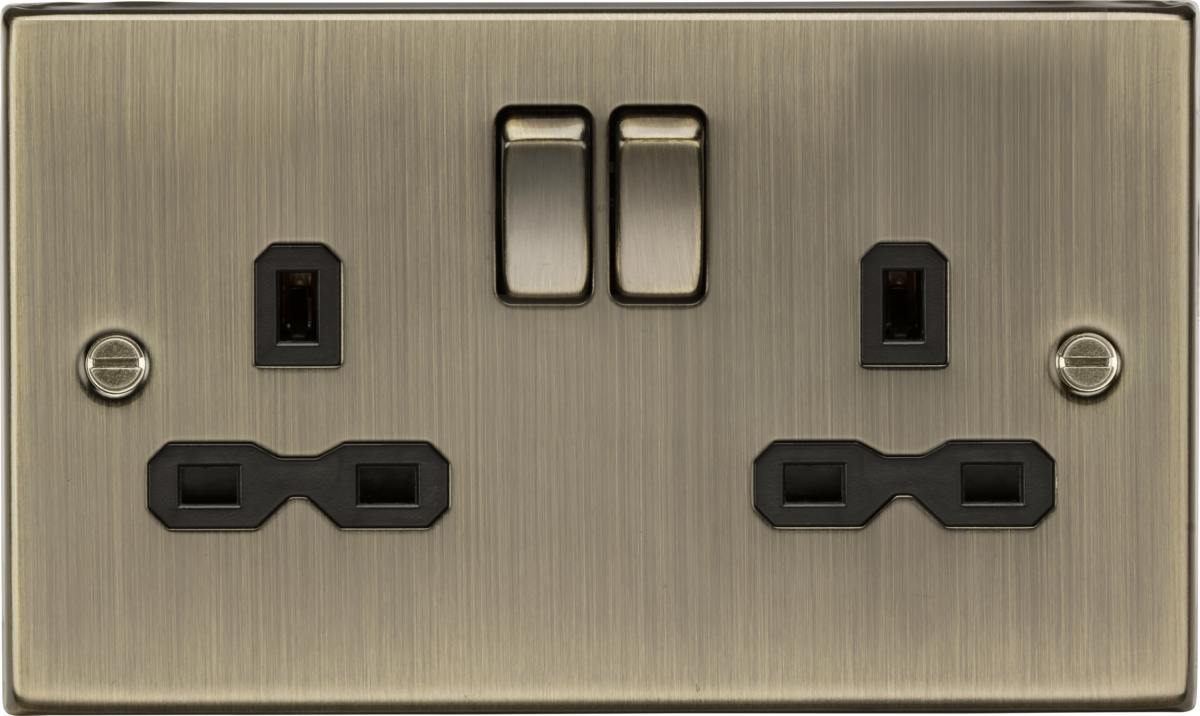

13A 2G DP Switched Socket with Twin Earths - Antique Brass with Black Insert CS9AB MLA

Provides a desirable decorative touch to any home, contemporary square edge metal design with matching metal rockers, unique socket insert design that is completely hidden once a plug is inserted.

• 13A 2G Switched Socket
• Double Pole Switches
• Fitted with twin earth terminals
• Square Edge design with built in gasket
• Certified to BS 1363:2
• Minimum mounting box depth 25mm

• Antique Brass with Black Insert

  www.mlaccessories.co.uk




  MLA PART CODE	CS9AB
  DESCRIPTION	13A 2G DP Switched Socket with Twin Earths - Antique Brass with Black Insert
  NET WEIGHT (KG)	0.232
  FINISH	Antique Brass
  INSERT COLOUR	Black
  DIMENSIONS (MM)	Height - 89 Width - 149.3 Projection - 10.5
  MINIMUM MOUNTING BOX DEPTH	25mm
  CONSTRUCTION	Construction - Premium grade steel
  IP RATING	IP20
  INPUT VOLTAGE	230V 50Hz
  SWITCH TYPE	Double Pole
  EARTH TERMINAL	Yes
  LOAD/MAX. LOAD	13A
  TERMINAL TYPE	Screw
  TERMINAL CAPACITY	3 x 2.5mm² or 2 x 4.0mm²
  WARRANTY	25year(s)
  MANUFACTURED IN ACCORDANCE WITH	BS 1363-2
  ORIGIN OF MANUFACTURE	China
  DECLARATION OF CONFORMITY (HELD ON FILE)	Yes
  EAN	5055832975328
