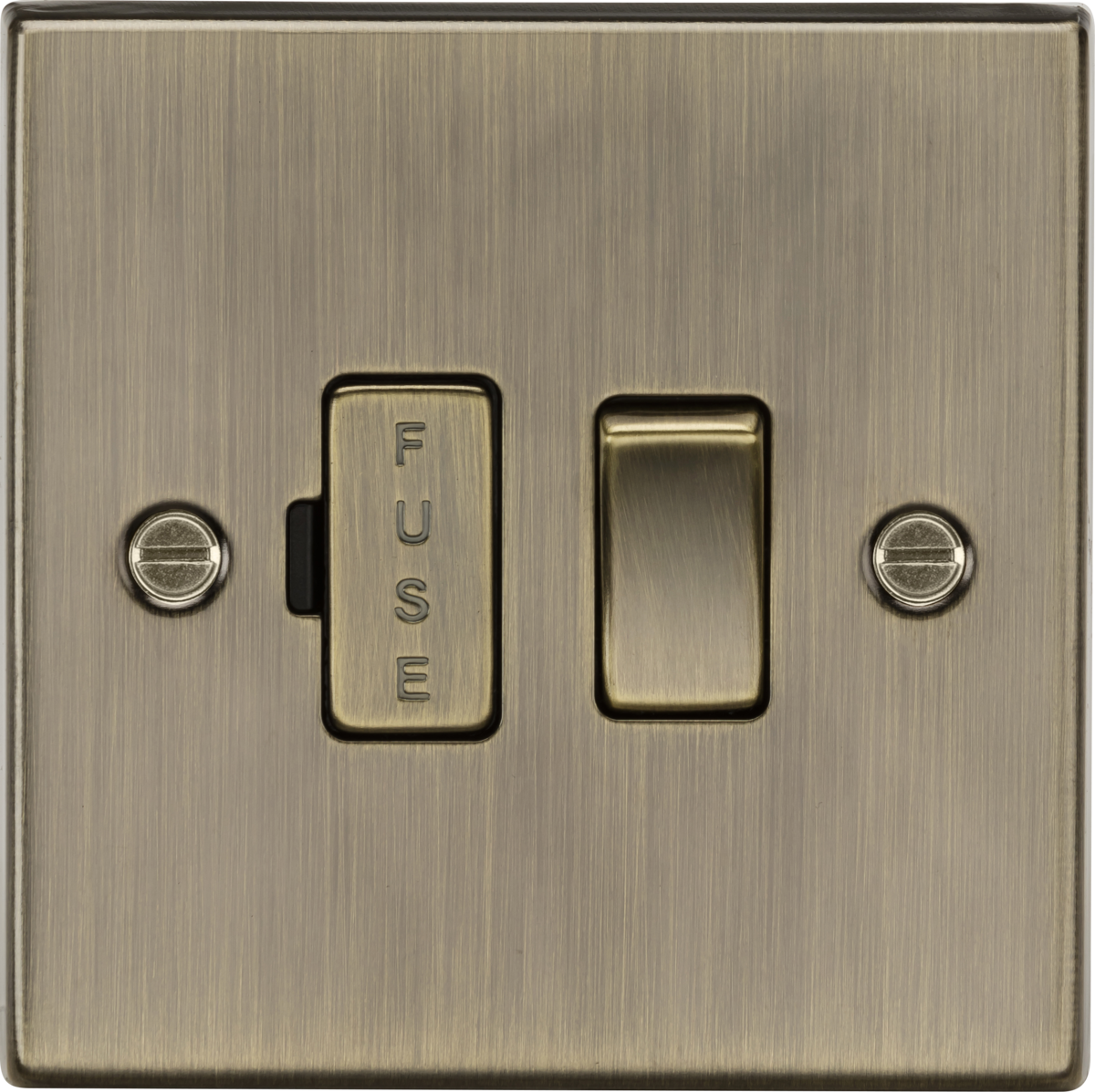

13A Switched Fused Spur Unit - Antique Brass CS63AB MLA

Switched Fused Spur solution in square edge metal design with matching rocker and fuse holder.

• 13A rated
• Double Pole
• Square edge design with built in gasket
• Certified to BS 1363-4
• Minimum mounting box depth 25mm

• MLA PART CODE	CS63AB
  DESCRIPTION	13A Switched Fused Spur Unit - Antique Brass
  NET WEIGHT (KG)	0.143
  FINISH	Antique Brass
  DIMENSIONS (MM)	Height - 89 Width - 89 Projection - 10.5
  MINIMUM MOUNTING BOX DEPTH	25mm
  CONSTRUCTION	Construction - Premium grade steel
  IP RATING	IP20
  INPUT VOLTAGE	230V 50Hz
  SWITCH TYPE	Double Pole
  EARTH TERMINAL	Yes
  LOAD/MAX. LOAD	13A
  TERMINAL TYPE	Screw
  TERMINAL CAPACITY	3 x 2.5mm² or 2 x 4.0mm²
  WARRANTY	25year(s)
  MANUFACTURED IN ACCORDANCE WITH	BS 1363-4
  ORIGIN OF MANUFACTURE	China
  DECLARATION OF CONFORMITY (HELD ON FILE)	Yes
  EAN	5055832976097
