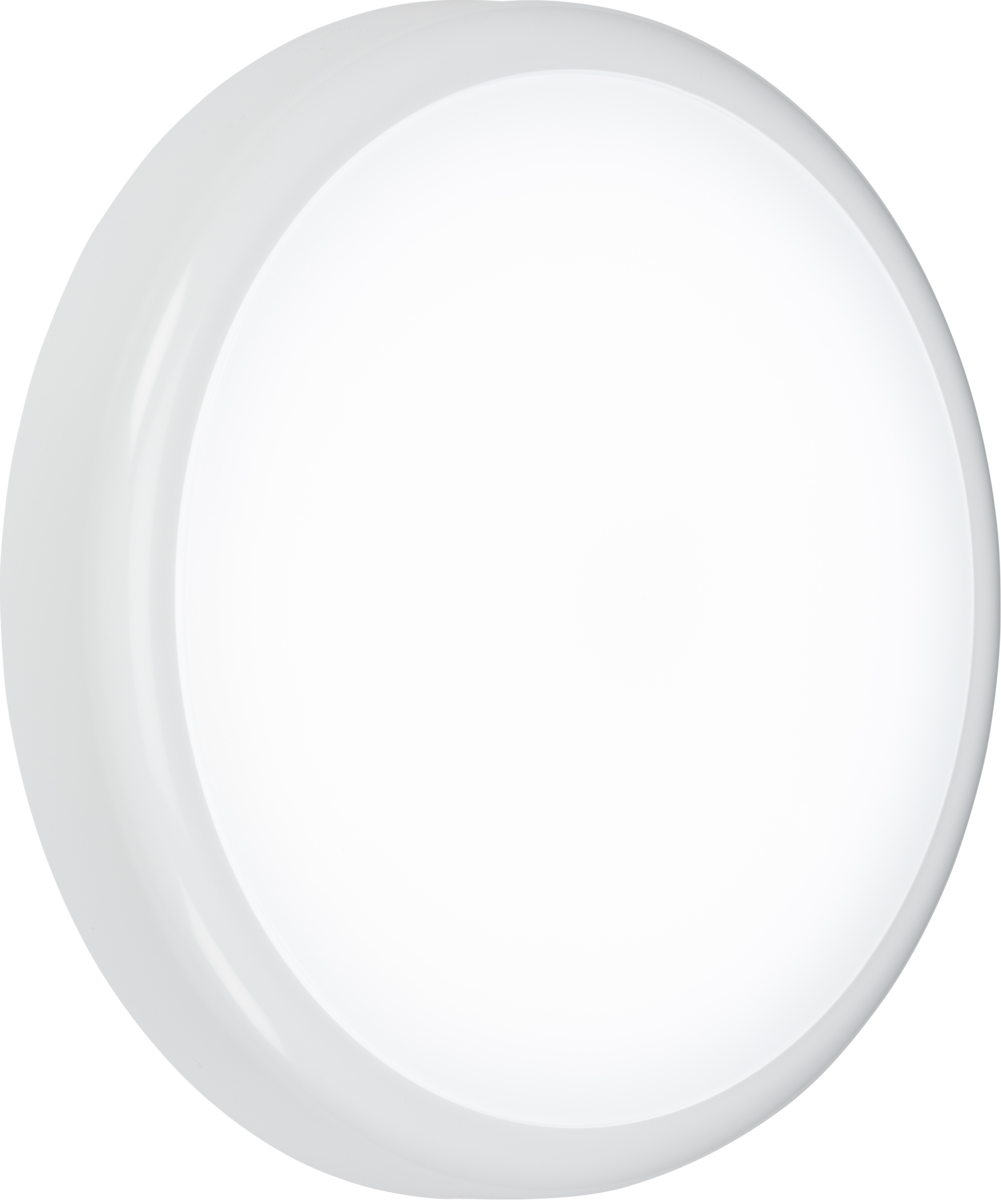

230V IP65 14W CCT Adjustable LED Bulkhead with Emergency MLA Knightsbridge BT14ACTEM
230V IP65 14W CCT Adjustable LED Bulkhead with Emergency MLA Knightsbridge BT14ACTEM
Regular price
£55.00 GBP
Regular price
Sale price
£55.00 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Long life, high lumen wall and ceiling mountable LED luminaire, for internal and external use. Options available that include microwave sensor, corridor function and standard. A range of easy fit accessories which includes bezel and eyelid options which makes this luminaire ideal for most domestic and commercial applications.
- CCT adjustable- 3000K/ 4000K/ 5700K
- 3 Hour Maintained Emergency
- Hinged LED Gear Tray
- Push fit fast fix terminal block
- Low profile
- Polycarbonate high output diffuser
3000K, 1130lm / 4000K, 1260lm / 5700K, 1210lm
| MLA PART CODE | BT14ACTEM |
|---|---|
| DESCRIPTION | 230V IP65 14W CCT Adjustable LED Bulkhead with Emergency |
| NET WEIGHT (KG) | 1.1 |
| FINISH | White |
| DIFFUSER | Opal |
| DIMENSIONS (MM) | Diameter - 315 Projection - 74 |
| CONSTRUCTION | Construction - Polycarbonate |
| CLASS | II |
| IP RATING | IP65 |
| IK RATING | IK08 |
| WATTAGE (W) | 14 |
| LAMP TECHNOLOGY | SMD LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 1130 / 1260 / 1210 |
| LUMENS LIGHT SOURCE ONLY (LM) | 1340 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 109.9 |
| LUMENS EMERGENCY MODE (LM) | 180 |
| CIRCUIT WATTAGE (W) | 12.19 |
| CCT | 3000/4000/5700K |
| LIGHT COLOUR | CCT |
| CRI | >80 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.058 |
| DISPLACEMENT FACTOR | >0.9 |
| SVM | 0.567 |
| PST-LM | 0.027 |
| BEAM ANGLE (DEGREES) | 115 |
| LIFE SPAN (HRS) | 30,000 |
| L70B50 LIFESPAN (HRS) | 50,000 |
| LED COMPATIBLE | Yes |
| DIMMABLE | No |
| EMERGENCY | Maintained / Non-maintained / Switched |
| OPERATING TEMPERATURE | -20~50°C |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE ENTRY (MM) | 20 |
| CABLE GLAND INCLUDED | Blind grommet |
| DRIVER | DRIVER TYPE - Constant Current MAX. OUTPUT - 14W OUTPUT VOLTAGE - 30 - 43V OUTPUT CURRENT - 320mA POWER FACTOR - 0.95 EFFICIENCY FULL LOAD - 83 ISOLATION - SELV AMBIENT TEMPERATURE (Ta) - -20~50°C CASE TEMPERATURE (Tc) - 75°C |
| BATTERY INCLUDED | Yes |
| WARRANTY | 5year(s) |
| WARRANTY INFORMATION | (excluding battery) |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 60598 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270825404 |
