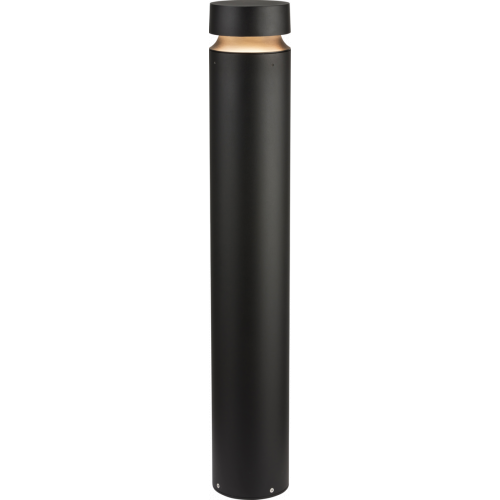

230V IP65 22W IK08 LED Bollard 1000mm - 3000K
230V IP65 22W IK08 LED Bollard 1000mm - 3000K
Regular price
£194.00 GBP
Regular price
Sale price
£194.00 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Pickup available at 35a Hospital Fields Road
Usually ready in 24 hours
| MLA PART CODE | CBL22BK |
|---|---|
| DESCRIPTION | 230V IP65 22W IK08 LED Bollard 1000mm - 3000K |
| NET WEIGHT (KG) | 8 |
| FINISH | Matt Black |
| DIMENSIONS (MM) | Diameter - 160 Height - 1000 |
| CONSTRUCTION | Construction - Die-cast aluminium Construction 2 - & stainless steel |
| CLASS | I |
| IP RATING | IP65 |
| IK RATING | IK08 |
| WATTAGE (W) | 22 |
| LAMP TECHNOLOGY | SMD LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 370 |
| LUMENS LIGHT SOURCE ONLY (LM) | 2690 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 128.09 |
| CIRCUIT WATTAGE (W) | 21 |
| CCT | 3000K |
| LIGHT COLOUR | Warm White |
| CRI | >80 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.1003 |
| DISPLACEMENT FACTOR | >0.9 |
| SVM | 0.86 |
| PST-LM | 0.06 |
| BEAM ANGLE (DEGREES) | 360 |
| L70B50 LIFESPAN (HRS) | 45,000 |
| LED COMPATIBLE | Yes |
| DIMMABLE | No |
| OPERATING TEMPERATURE | -20~50°C |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE LENGTH (M) | 1 |
| CABLE TYPE | 3 x 1.0sq mm H05RN-F |
| CABLE GLAND INCLUDED | Compression gland |
| DRIVER | DRIVER TYPE - Constant Current MAX. OUTPUT - 21.5W OUTPUT VOLTAGE - up to 60V OUTPUT CURRENT - 500mA POWER FACTOR - 0.9 EFFICIENCY FULL LOAD - 91 ISOLATION - SELV AMBIENT TEMPERATURE (Ta) - -20~50°C CASE TEMPERATURE (Tc) - 65°C |
| WARRANTY | 3year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 60598 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270873627 |
Modern design, heavy duty bollard - new introduction to the expanding Knightsbridge professional portfolio. Indirect, 360° light output, giving a stunning all-round lighting effect along with a stylish, contemporary fitting. Aluminium and Stainless Steel housing in a hard wearing powder coated finish to ensure quality and longevity.
- High efficiency SMD LED
- IP65
- IK08
- Supplied with anchor bolt mounting kit
- Comes with 1m outdoor cable and IP68 cable gland
3000K, Warm White
