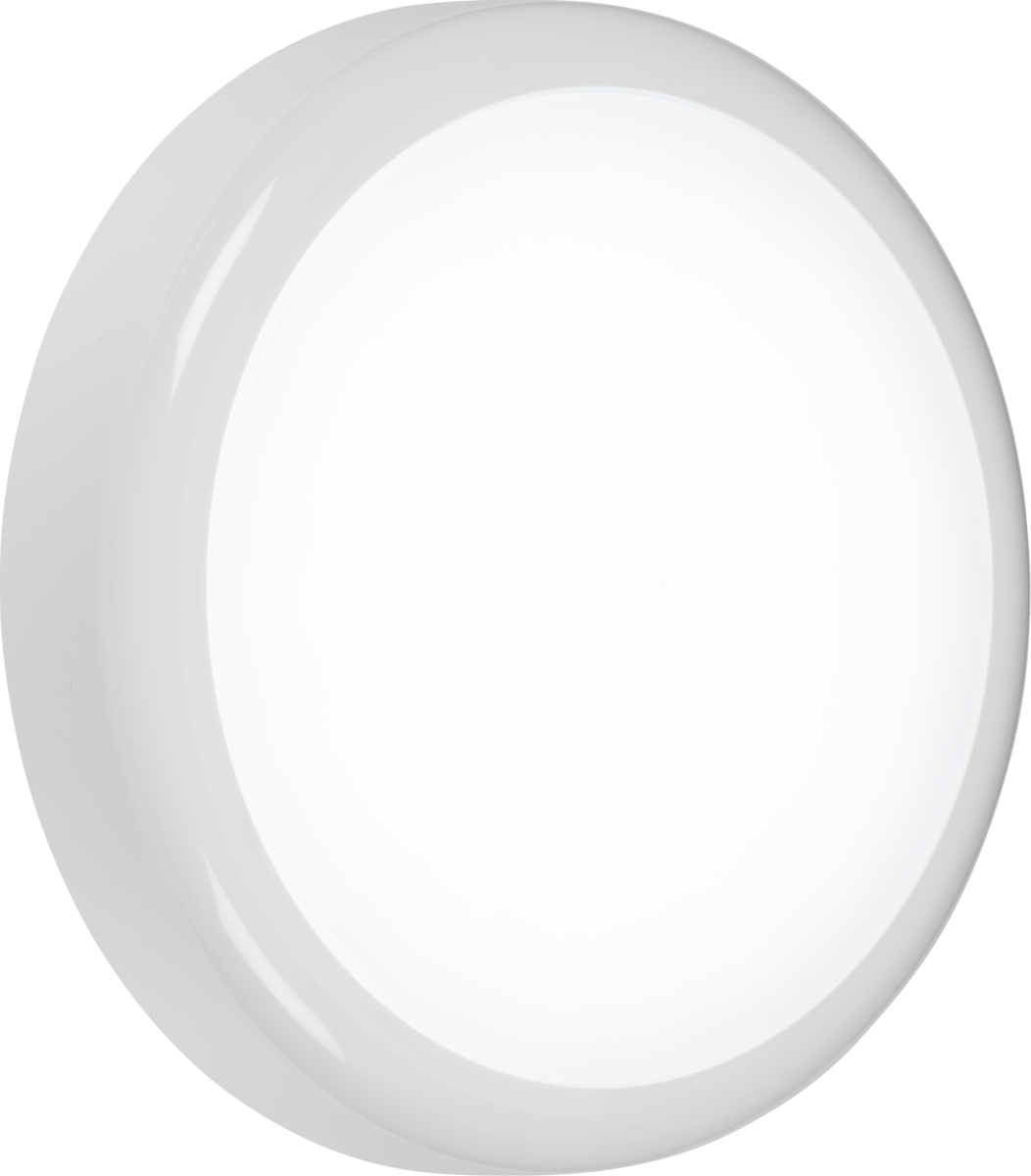

230V IP65 9W CCT Adjustable LED Bulkhead
230V IP65 9W CCT Adjustable LED Bulkhead
Regular price
£28.50 GBP
Regular price
Sale price
£28.50 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Long life, high lumen wall and ceiling mountable LED luminaire, for internal and external use. Options available include microwave sensor and emergency. A range of easy fit, coloured accessories which includes bezel and eyelid options which makes this luminaire ideal for offices, multiple occupancy and commercial applications, optimising energy efficiency automation at all times.
- CCT adjustable - 3000K / 4000K / 5700K
- Hinged LED Gear Tray
- Push fit fast fix terminal block
- Low Profile
- Polycarbonate high output diffuser
3000K, 730lm / 4000K, 810lm / 5700K, 780lm
| MLA PART CODE | BT9ACT |
|---|---|
| DESCRIPTION | 230V IP65 9W CCT Adjustable LED Bulkhead |
| NET WEIGHT (KG) | 0.6 |
| FINISH | White |
| DIFFUSER | Opal |
| DIMENSIONS (MM) | Diameter - 256 Projection - 74 |
| CONSTRUCTION | Construction - Polycarbonate |
| CLASS | II |
| IP RATING | IP65 |
| IK RATING | IK08 |
| WATTAGE (W) | 9 |
| LAMP TECHNOLOGY | SMD LED |
| LAMP INCLUDED | Yes |
| LUMENS (LM) | 730 / 810 / 780 |
| LUMENS LIGHT SOURCE ONLY (LM) | 900 |
| LUMEN TOLERANCE | 5% |
| EFFICACY (LM/W) | 118.41 |
| CIRCUIT WATTAGE (W) | 7.617 |
| CCT | 3000/4000/5700K |
| LIGHT COLOUR | CCT |
| CRI | >80 |
| SDCM | <6 |
| RUNNING CURRENT (A) | 0.036 |
| DISPLACEMENT FACTOR | >0.9 |
| SVM | 0.536 |
| PST-LM | 0.025 |
| BEAM ANGLE (DEGREES) | 115 |
| LIFE SPAN (HRS) | 30,000 |
| L70B50 LIFESPAN (HRS) | 50,000 |
| LED COMPATIBLE | Yes |
| DIMMABLE | No |
| OPERATING TEMPERATURE | -20~50°C |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE ENTRY (MM) | 20 |
| CABLE GLAND INCLUDED | Blind grommet |
| DRIVER | DRIVER TYPE - Constant Current MAX. OUTPUT - 8.6W OUTPUT VOLTAGE - 30 - 43V OUTPUT CURRENT - 200mA POWER FACTOR - 0.95 EFFICIENCY FULL LOAD - 80 ISOLATION - SELV AMBIENT TEMPERATURE (Ta) - -20~50°C CASE TEMPERATURE (Tc) - 75°C |
| WARRANTY | 5year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 60598 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5056270825305 |
