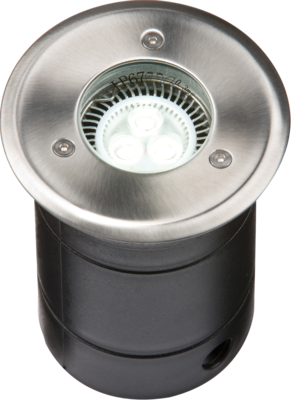

230V IP67 Grade 304 Stainless Steel Walkover / Driveover Light
230V IP67 Grade 304 Stainless Steel Walkover / Driveover Light
Regular price
£22.00 GBP
Regular price
Sale price
£22.00 GBP
Taxes included.
Shipping calculated at checkout.
WGULED
IP67 230V Round Stainless Steel Walkover Light.
GU10 230V lampholder. GU10 LED lamp (not supplied with fitting). Grade 304 stainless steel. Electrical termination via 2 x 20mm compression glands in base of fitting. Ground recessed. Weight load 1000kg. Dimmable subject to lamp type.
| CONSTRUCTION | 304 Stainless steel |
|---|---|
| FINISH | Stainless Steel |
| CLASS | I |
| IP RATING | IP67 |
| PRIMARY VOLTAGE | 230V 50Hz |
| DIAMETER | 105 mm |
|---|---|
| PROJECTION | 6 mm |
| RECESSED DEPTH | 133 mm |
| CUT-OUT DIAMETER | 92 mm |
| CUT-OUT WITH SLEEVE | 92 mm |
| MLA PART CODE | WGULED |
|---|---|
| DESCRIPTION | 230V IP67 Grade 304 Stainless Steel Walkover / Driveover Light, Depth - 140mm, Flange - 105MM |
| NET WEIGHT (KG) | 0.59 |
| FINISH | Stainless Steel |
| DIFFUSER | Clear |
| DIMENSIONS (MM) | Diameter - 105 Projection - 6 Overall Height - 140 Recessed Depth - 133 |
| CUT-OUT (MM) | Cut-out Diameter - 92 Cut-out with Sleeve - 92 |
| CONSTRUCTION | Construction - 304 Stainless steel |
| CLASS | I |
| IP RATING | IP67 |
| MAX. WATTAGE (W) | 25 |
| LAMP TECHNOLOGY | Halogen / LED Compatible |
| LAMP BASE | GU10 |
| LAMP INCLUDED | No |
| LED COMPATIBLE | Yes |
| DIMMABLE | Lamp dependent |
| MAX. WEIGHT LOADING | 1000kg at 5mph |
| INPUT VOLTAGE | 230V 50Hz |
| CABLE ENTRY (MM) | 2 x 20 |
| CABLE GLAND INCLUDED | Compression gland |
| WARRANTY | 1year(s) |
| MANUFACTURED IN ACCORDANCE WITH | BS EN 60598 |
| ORIGIN OF MANUFACTURE | China |
| DECLARATION OF CONFORMITY (HELD ON FILE) | Yes |
| EAN | 5055559132790 |
