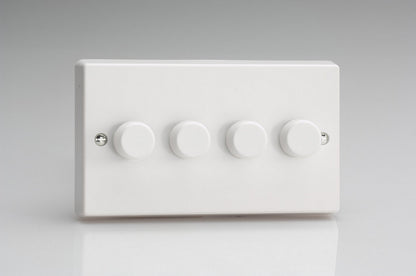

4 Gang LED Dimmer White Varilight JQDP254W

Product Code: JQDP254W

Product Description: 4-Gang 2-Way Push On/Off Rotary LED Dimmer 4 x 0-120W (1-10 LEDs) (Twin Plate)

Range: White

Finish: White Plastic

Product Category: LED Dimmers

Insert/Knob Colour: White Knob

Barcode: 5021575581041

Dimensions: 85x145x47mm

Faceplate Depth: 15mm

Net Weight: 299g

Gross Weight: 302g

Fixing Centres: 120.6mm

Depth from Mounting Face: 16.1mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: LED; 120W (Max. 10 lamps)

Maximum Current Rating: 0.9A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365005
