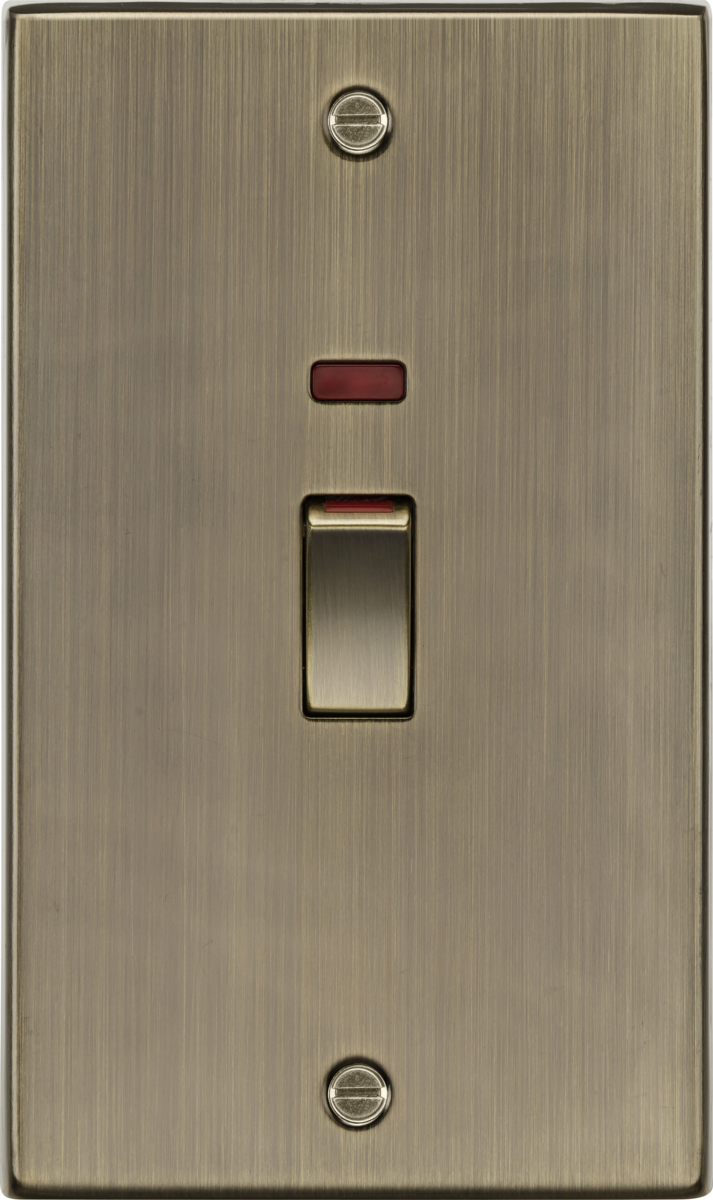

45A DP switch with neon (2G size) - Antique Brass CS82MNAB MLA

Cooker control units enable isolation of the unit so that maintenance and repairs to be carried out separately. The unit can be switched off, preventing the appliance from being turned on accidentally - for example whilst cleaning. Control two or more cooking appliances in the same room, providing rating is sufficient.

• 45A
• Double pole
• With neon indicator
• Minimum mounting box depth: 47mm

• 45A DP switch with neon (2G size) - Antique Brass

  www.mlaccessories.co.uk




  MLA PART CODE	CS82MNAB
  DESCRIPTION	45A DP switch with neon (2G size) - Antique Brass
  NET WEIGHT (KG)	0.223
  FINISH	Antique Brass
  DIMENSIONS (MM)	Height - 149.3 Width - 89 Projection - 10.5
  MINIMUM MOUNTING BOX DEPTH	47mm
  CONSTRUCTION	Construction - Premium grade steel
  CLASS	I
  IP RATING	IP20
  INPUT VOLTAGE	230V 50Hz
  SWITCH TYPE	Double Pole
  EARTH TERMINAL	Yes
  NEON INDICATOR	Yes
  LOAD/MAX. LOAD	45A
  TERMINAL CAPACITY	2 x 6.0mm² or 3 x 4.0mm²
  WARRANTY	25year(s)
  MANUFACTURED IN ACCORDANCE WITH	BS EN 60669-1
  ORIGIN OF MANUFACTURE	China
  DECLARATION OF CONFORMITY (HELD ON FILE)	Yes
  EAN	5056270879469
