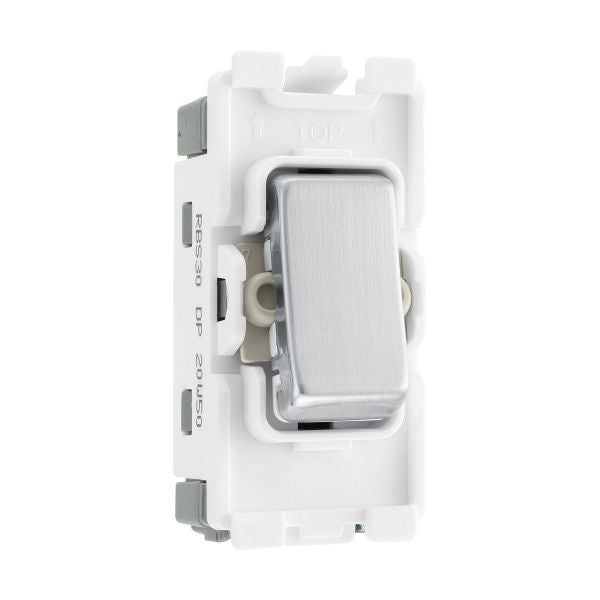

BG Nexus Grid Brushed Steel 20A 2 Pole Switch Module RBS30

• Rating: 20 Amp, 20AX Inductive
• Double pole
• Brushed Steel finish
• Minimum mounting box depth: 25mm
• Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
• Manufactured to BS EN 60669-2-1

The BG Electrical Nexus Grid RBS30 is a brushed stainless-steel double-pole switch module, rated at 20AX.

A versatile switch module, the RBS30 is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing. Owing to its double-pole nature, it functions well for 20A appliances that would benefit from the additional safety of live and neutral switching, such as water heaters.

It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame. The brushed stainless-steel finish has a sleek, modern look and is lightly lacquered to reduce the impression of fingerprints.

To aid installation, the RBS30 comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.
