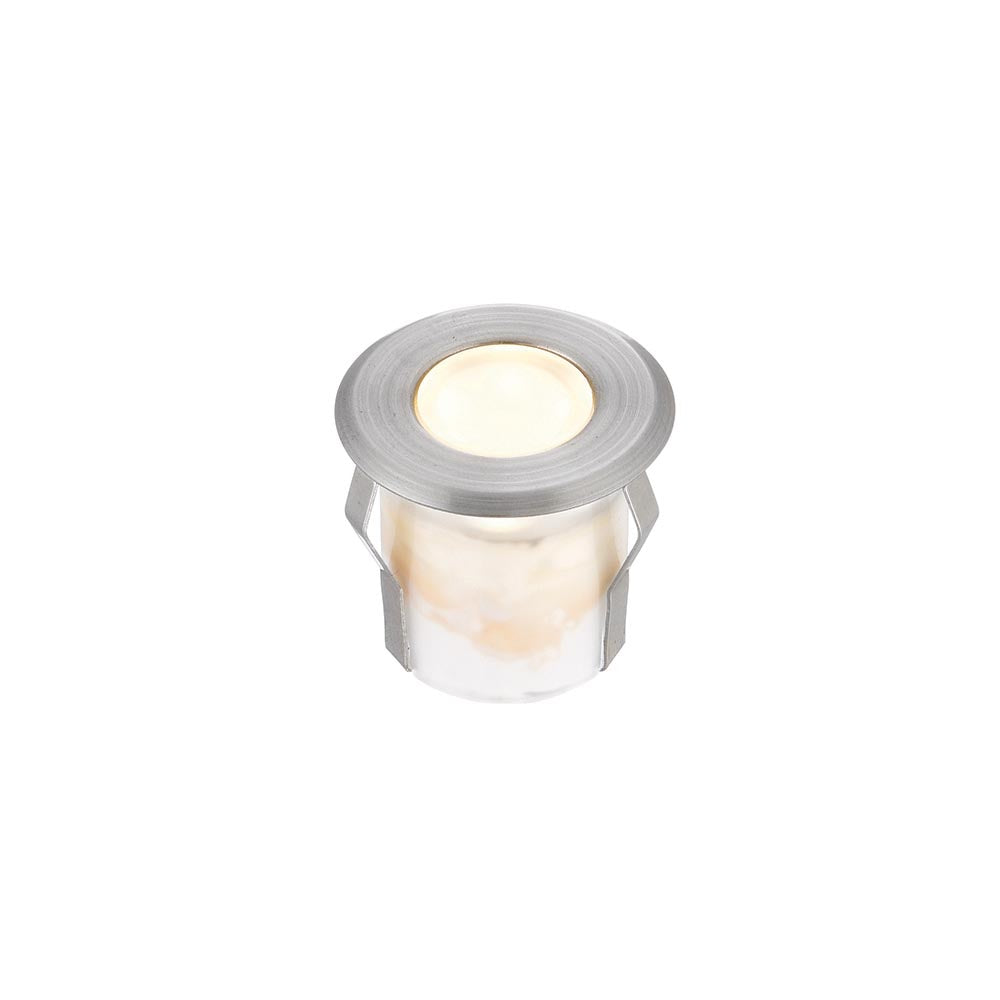

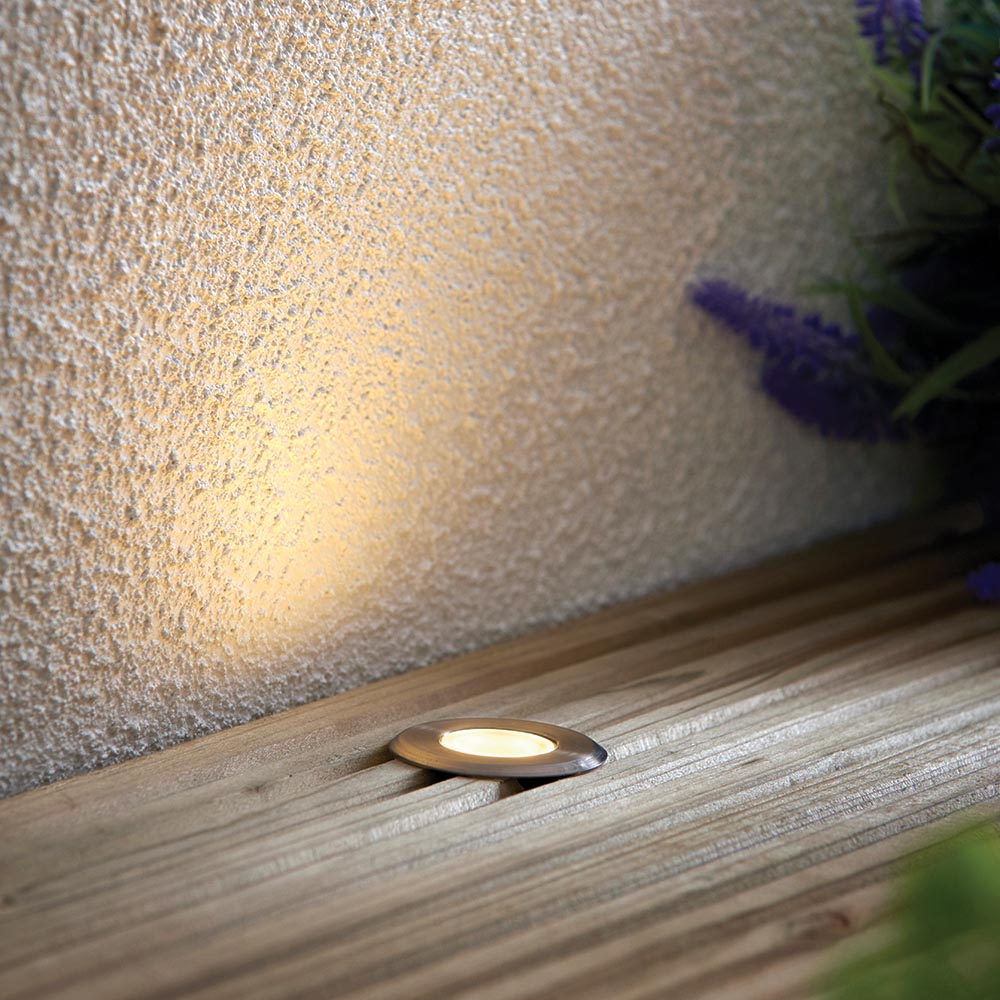

The Cove is an SMD LED decking light, with the latest in LED technology, this 0.8W recessed fitting is ideal for coastal locations. Available in marine grade stainless steel finish and a variety of colour temperatures.
Manufactured from marine grade stainless steel
Marine grade br stainless steel & frosted pc
Constructed from marine grade stainless steel (316) & polycarbonate
Complete with integrated control gear
0.8W LED module (SMD 2835) Cool White (Included)
0.8W LED module (SMD 2835) Warm White (Included)

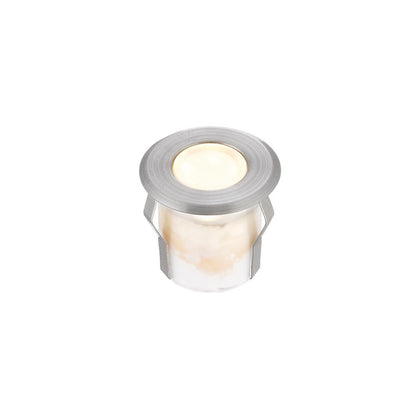

K: 3000 Lm: 50 Lm/W: 63 (warm white)

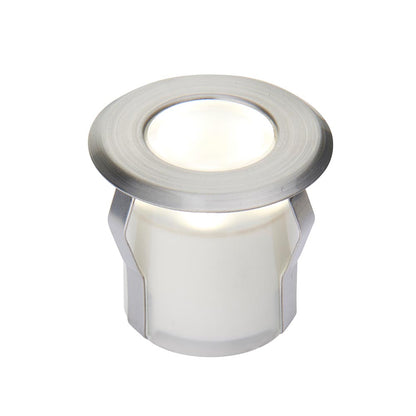

K: 4000 Lm: 50 Lm/W: 63 (cool white)
IP67
Proj: 3mm Dia: 40mm
Class 2
Cut hole Dia: 32mm
2YR Warranty
Weight: 0.1 Kg
This light fitting is double insulated and does not require connection to an Earth circuit.
This product is not suitable for dimming.
Installation
Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully note the position of each set of wires. Note that the switch is turned off before installation. After deciding the layout of the light fitting/s, and the position of the junction box, ensure the cables are long enough to the desired positions. • Ensure that there is some slack cable to allow removal of the unit. • Cut a 32mm diameter hole in the mounting surface. The hole must be at least 70mm deep to allow the product to sit properly. • Take care not to damage any pipes or cables beneath the mounting surface. • Ensure that adequate room is left for the cable. • Feed the cable of each unit through the mounting holes and check the fit of the unit in the hole. • Refit the cover on the IP terminal block, ensuring that the seals are correctly located. • Push the unit into the hole, and adjust the cable so it does not get snagged. • Replace fuse or circuit breaker and switch on. Your light is now ready for use
