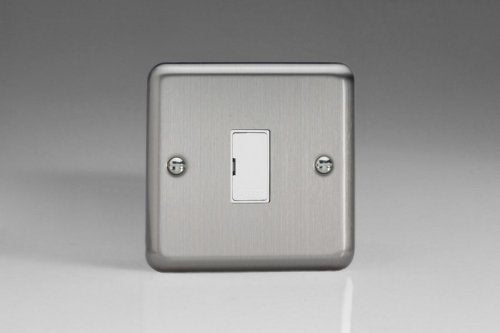

Fused Spur Unswitched Matt Chrome Stainless Steel Varilight White Inserts
Fused Spur Unswitched Matt Chrome Stainless Steel Varilight White Inserts
Pickup available at 35a Hospital Fields Road
Usually ready in 24 hours
Product Description: 13A Unswitched Fused Spur XS6UW
Range: Classic
Finish: Matt Chrome
Product Category: Fused Spur
Insert/Knob Colour: White Inserts
Barcode: 5021575830576
Dimensions: 86x86x30mm
Faceplate Depth: 7mm
Net Weight: 156g
Gross Weight: 158g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16.8mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4
Commodity Code: 85389091
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
