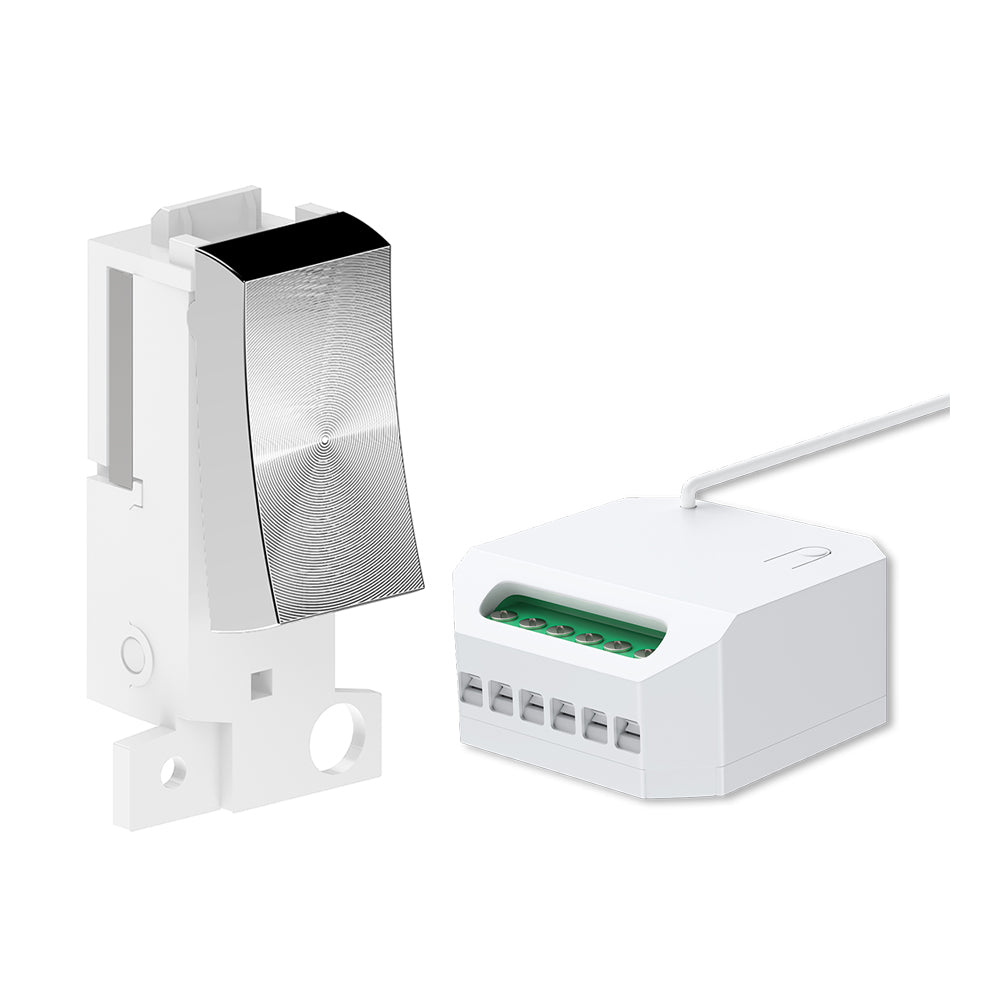

Grid Switch, Satin Chrome with Non Dimmable + WiFi 5A RF Mini Receiver
Grid Switch, Satin Chrome with Non Dimmable + WiFi 5A RF Mini Receiver
Type Grid Switch, Satin Chrome with Non Dimmable + WiFi 5A RF Mini Receiver
Switch:
Upgrade your home with the ENER-J 1 Gang Grid Switch, featuring an elegant Satin Chrome finish. Compatible with Powergrid system, this wireless grid switch offers effortless installation and seamless integration into plates. Say goodbye to wiring hassles and batteries – our innovative kinetic system transforms movement into energy, providing reliable operation without the need for external power sources.
Satin Chrome finish for a stylish and timeless look
Compatible with Powergrid system
Built-in micro energy generator for reliable operation
No wiring or batteries required for easy installation and usage
Works with ECO series standard or dimming receiving controllers
Technical Specifications
Software support end date: 10/08/2028
| Specification | Value |
|---|---|
| Work Type | Push Button |
| Power Source | Micro Energy Acquisition and self-powered |
| Communication Model | FSK |
| Work Frequency | 433Hz |
| Number of Keys | 1 (1 gang) Satin Chrome |
| Life Time | 200,000 times on/off |
| Control Distance | 20m (indoor) |
| Control Method | Pairing with ECO Series Receiver Modules |
| Compatibility | CLICK Mini Grid Plates |
| Warranty | 2 Years |
Receiver:
Wireless Remote & Voice Control: Pair with our ECO Range Series Wireless Kinetic Switches for easy remote control or use the ENERJSMART app or voice commands with Alexa/Google Home.
Convert Existing tradition hard wired switch to 2 Way: Now you dont need to worry if your hard wired switch is off, then you cant use the wireless switch to control the same set of lights. With the new magic receiver module, even if your hard wired switch is off, the kinetic switch will still work.
Slim Design: The compact receiver module fits seamlessly in the ceiling and can be used outdoors when placed in a waterproof junction box.
Durable & Flexible Coding: Designed with ultra-low power consumption, the receiver runs up to 200,000 hours and supports one switch controlling up to 10 receiver modules or multiple switches controlling one light.
APP & Voice Control: Use the ENERJSMART app to control the receiver module from anywhere, set timers, and schedule on/off times for added convenience. Use your voice assistants such as Alexa, Google Home, Siri, etc to turn on/off your Magic Module.
| Range | Indoor: Max 20M, Outdoor: Max 80M (approx) |
|---|---|
| Rated Load | 5A |
| Max Load | LED: 500W, Other: 1100W |
| IP Rating | Indoor Only (IP20) |
| Dimensions | Height: 64mm, Length: 32mm, Width: 24mm |
| Standby Power Consump. | <0.5W |
| Communication | RF 433MHz + WiFi (2.4G only) APP & Voice Control |
- 500W RF+WiFi Non-Dimmable Receiver Module
- User Manual
