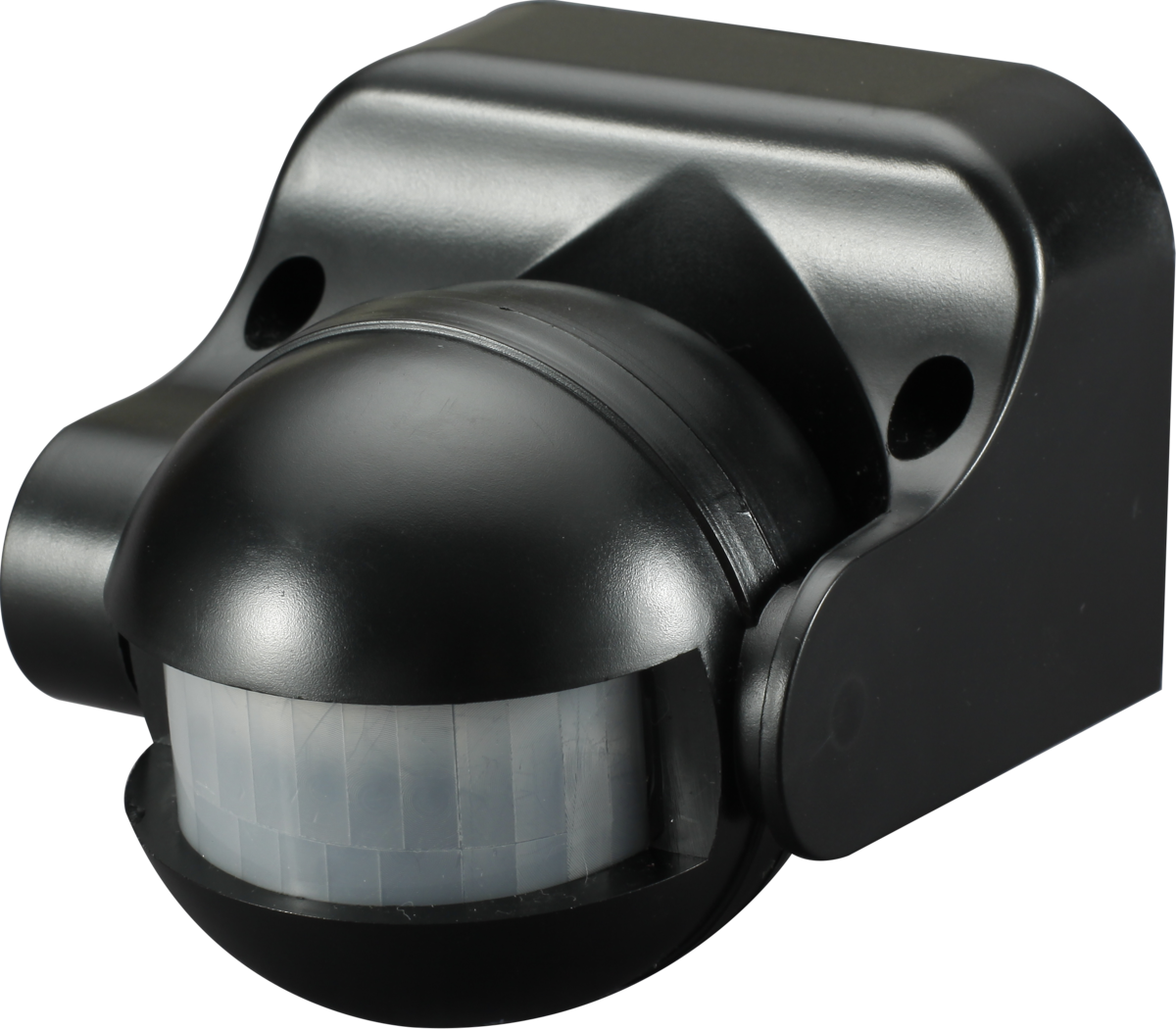

IP44 180° PIR Sensor - Black

Stand-alone PIR unit to suit a variety of installations

• IP44 rated
• 180° field of detection
• 12m range @ 2.4m installation height
• Adjustable head unit for optimum positioning
• Wall or ceiling mountable
• Automatic operation
• Can be wired in parallel
• Adjustable Lux
• Adjustable time : 10 seconds to 8 minutes
• Switching capacity: Max. 1200W Incandescent / Max. 300W LED
• Certified to EN 60669-2-1, EN 60669-1, EN 55015. EN 61547, EN 61000
• Supplied in Knightsbridge box

• MLA PART CODE	OS004B
  DESCRIPTION	IP44 180° PIR Sensor - Black
  NET WEIGHT (KG)	0.12
  FINISH	Black
  DIMENSIONS (MM)	Height - 82 Width - 86 Projection - 100
  CONSTRUCTION	Construction - Polycarbonate
  CLASS	II
  IP RATING	IP44
  IC RATED	No
  OPERATING TEMPERATURE	-20 to 40°C
  INPUT VOLTAGE	230V 50Hz
  LOAD/MAX. LOAD	1200W Incandescent / 300W LED
  ADDITIONAL FEATURES	Optimum installation height 1.8 to 2.5m
  FUNCTION	Adjustable Lux, Adjustable Time
  SENSOR TYPE	PIR
  SENSOR OVERRIDE	No
  SENSOR DETECTION ANGLE (DEGREES)	180
  OPTIMUM DETECTION RANGE (M)	12 @ 2.4m height
  SENSOR DURATION	10 seconds to 8 minutes
  STANDBY POWER	0.1W
  WARRANTY	2year(s)
  MANUFACTURED IN ACCORDANCE WITH	EN 60669-2, EN 60669-1
  ORIGIN OF MANUFACTURE	China
  DECLARATION OF CONFORMITY (HELD ON FILE)	Yes
  EAN	5055832930297
