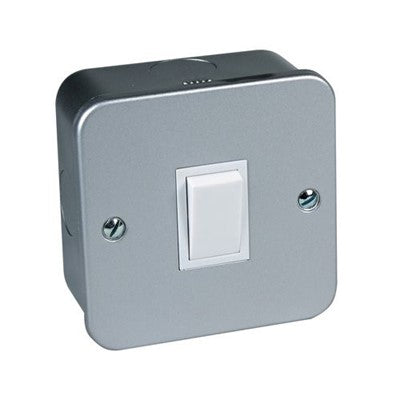

Metal Clad 1Gang 2Way Switch Single Switch CED
Metal Clad 1Gang 2Way Switch Single Switch CED
Regular price
£6.05 GBP
Regular price
Sale price
£6.05 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Axiom Metal Clad Accessory Range is made in tough, durable steel plate, coated in phosphate to provide corrosion resistance and finished with a silver grey powder coating.
| General Information | |
| Colour/Finish | Silver |
| Dimensions (mm) | 79 x 79 x 42mm |
| Fixing Centre (mm) | 60.3mm |
| Front Plate Depth (mm) | 5mm |
| Minimum Box Depth (mm) | 40mm (Integrated) |
| Electrical | |
| Approvals | BS 3676 BSEN 60669 |
| Frequency (Hz) | 50/60Hz |
| Kite Mark / ASTA | KM73110 |
| Rated Load Capacity (Amps) | 10A |
| Rated Operating Voltage (v) | 240V |
| Terminal Capacity (mm²) | 1.5mm² |
| Performance Data | |
| Control (1 / 2 Way) | 2 Way |
| Knockouts | 4 |
| Outlets (1 / 2) etc | 1 |
| Switch (1 / 2) etc | 1 Switch |
| Construction | |
| Body | Urea-formaldehyde |
| Warranty (Years) | 25yrs |
| Other | |
| Applications | Domestic and commercial applications |
