SpektroLED Evo Fixed - Fire Rated IP65 Downlight with 2 x Wattage and 4 x CCT MLA Knightsbridge SPKEVF

SpektroLED Evo Fixed - Fire Rated IP65 Downlight with 2 x Wattage and 4 x CCT MLA Knightsbridge SPKEVF

Regular price £12.50 GBP
Regular price Sale price £12.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

New to Knightsbridge, the evolution of SpektroLED - one of the many innovations in our fire-rated downlight portfolio designed with budget in mind and with a passion for choice. SpektroLED Evo Fixed feature 2 selectable wattages and 4 selectable CCTs with 6 easy to install magnetic bezel options (sold separately), boasting the features to 48-in-1* solution. Ideal choice for cost and energy efficient lighting installation that demand versatility .Additionally, the various bezel colours lend themselves perfectly to any type of interior design and the IP65** rating means SpektroLED is suitable for dry and wet locations too.

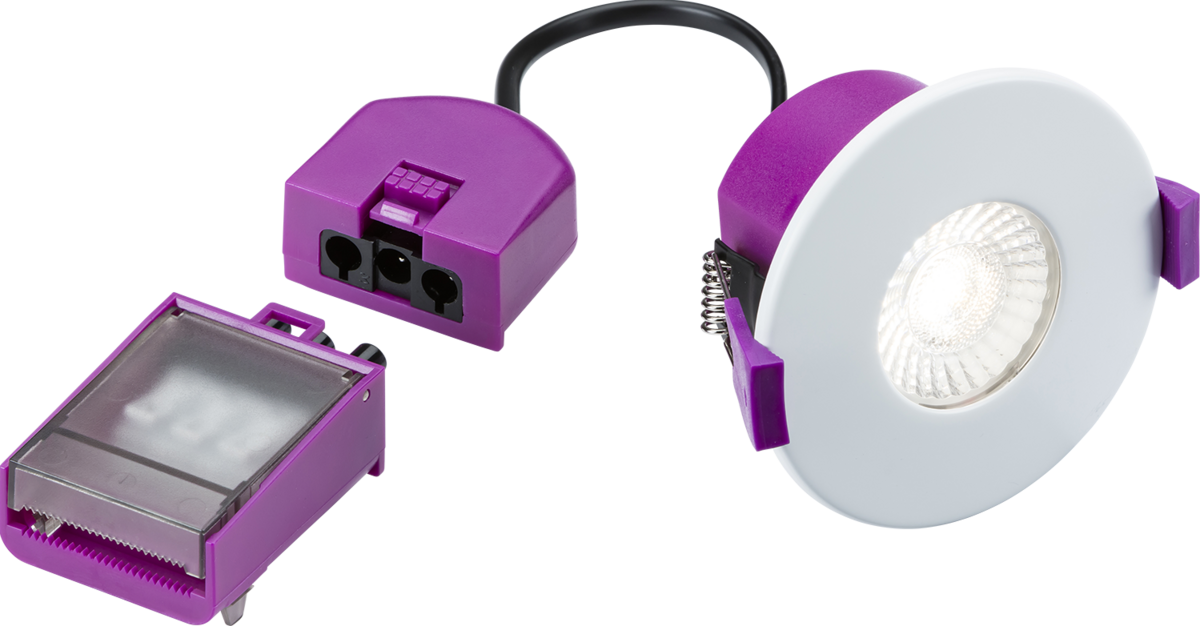

SpektroLED is truly one of the most versatile products on the market, designed with the contractor and end user in mind. The cleverly engineered male and female power connectors mean the cables can be terminated and hidden away until the decoration is finished with the downlight simply plugged in and installed after. The same connector system means the luminaire can be removed for maintenance by simply unplugging. New to SpektroLED Evo, selectable wattages and CCT switches are located under the magnetic bezel, enabling the ease of adjustment after installation.

  • 230V direct to fixture with loop in-loop out first and second fix connectors
  • Selectable 5W and 7W outputs (to regulate maximum light output) for varying illumination requirements
  • Selectable 2700K, 3000K, 4000K, 6000K CCTs
  • Selectable switches accessible after installation
  • Complies with the latest energy efficiency standards
  • Fire-rated - 30/60/90min solid timber, 30min web joist and 30min i-joist (staircraft)
  • IC rated (insulation contact)
  • Acoustic rated ISO 10140-2:2010
  • 5-year warranty
  • Dimmable***
  • Extremely low-profile design
  • IP65** from the front making it ideal for bathrooms as well as living spaces (also available in Tilt)
  • Product is sold without bezel. Bezels are available separately with a choice of white, matt black, chrome, polished chrome, brass and antique brass finishes

*48-in-1 features are achieved by adjustment of the various wattages and colour temperatures used in combination with the range of bezels available (sold separately) ** IP65 from below, IP20 from above *** For use with Trailing-edge dimmers - please check compatibility before installation.

MLA PART CODE SPKEVF
DESCRIPTION SpektroLED Evo Fixed - Fire Rated IP65 Downlight with 2 x Wattage and 4 x CCT
NET WEIGHT (KG) 0.23
DIFFUSER Prismatic
DIMENSIONS (MM) Diameter - 90
Recessed Depth - 43
Minimum Void - 45
CUT-OUT (MM) Cut-out Diameter - 70
CONSTRUCTION Construction - Pressed steel
CLASS II
IP RATING IP65 (IP20 from above)
WATTAGE (W) 5 / 7
LAMP TECHNOLOGY SMD LED
LUMENS (LM) 580/600/630/620/780/810/870/840
LUMENS LIGHT SOURCE ONLY (LM) 1020
LUMEN TOLERANCE 5%
EFFICACY (LM/W) 144
CIRCUIT WATTAGE (W) 7.1
CCT 2700/3000/4000/6000K
LIGHT COLOUR CCT
CRI >80
SDCM <6
RUNNING CURRENT (A) 0.037
DISPLACEMENT FACTOR >0.7
SVM 0.008
PST-LM 0.297
BEAM ANGLE (DEGREES) 60
L70B10 LIFESPAN (HRS) 50,000
DIMMABLE Yes*
FIRE-RATED Tested to 30/60/90 minutes
I-JOIST RATED 30 minutes
WEB-JOIST RATED 30 minutes
IC RATED Yes
ACOUSTIC RATED Yes
OPERATING TEMPERATURE 25°C
INPUT VOLTAGE 230V 50Hz
WARRANTY 5year(s)
ORIGIN OF MANUFACTURE China
DECLARATION OF CONFORMITY (HELD ON FILE) Yes
EAN 5056270840865
