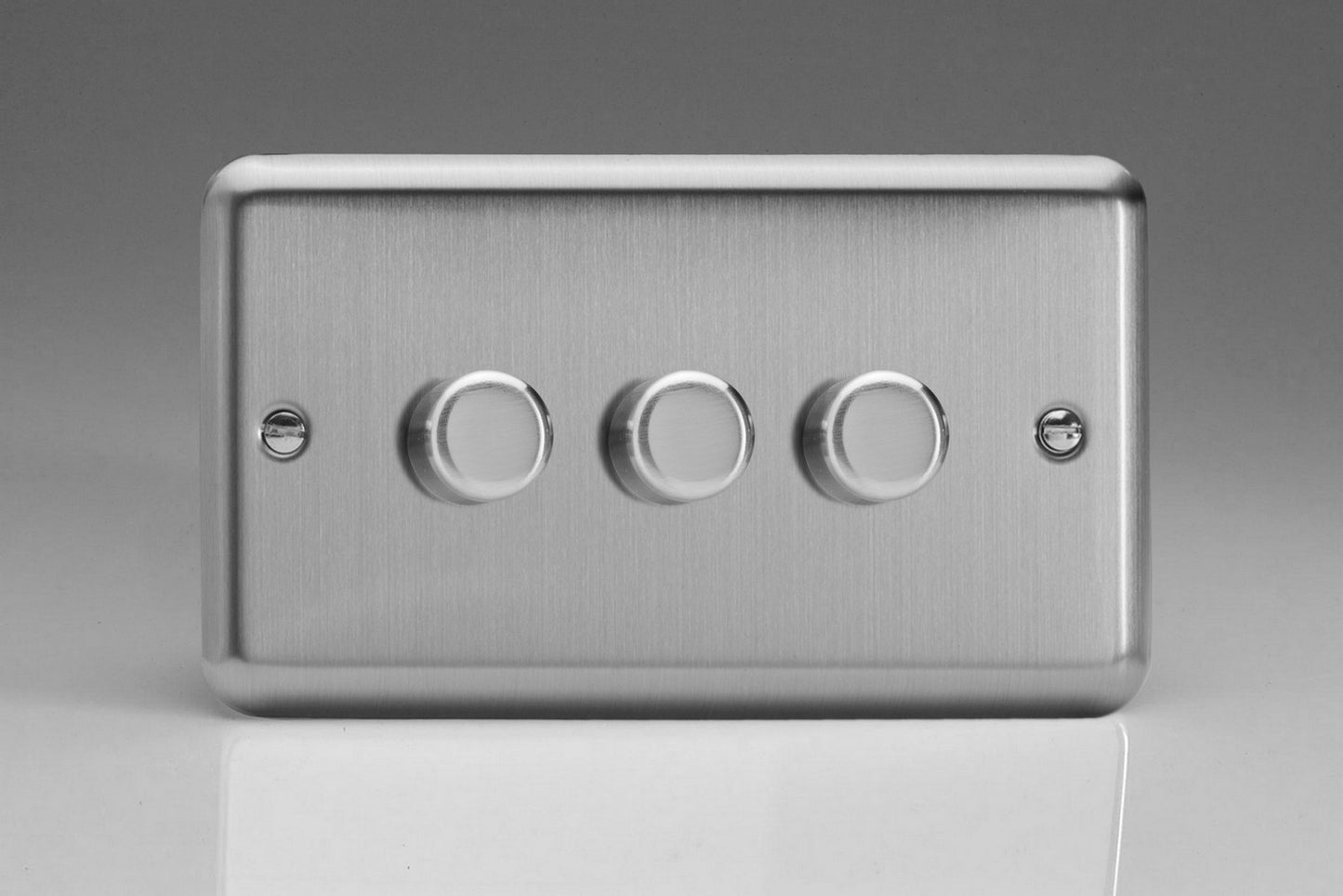

Triple LED Dimmer 3Gang 2Way Matt Chrome Stainless Steel Varilight

Product Description: 3-Gang 2-Way Push-On/Off Rotary LED Dimmer 3 x 0-120W (1-10 LEDs) (Twin Plate) JSDP303

Range: Classic

Finish: Matt Chrome

Product Category: V-Pro Dimmer

Insert/Knob Colour: Steel Knobs

Barcode: 5021575591057

Dimensions: 88x148x47mm

Faceplate Depth: 7mm

Net Weight: 309g

Gross Weight: 312g

Fixing Centres: 120.6mm

Depth from Mounting Face: 17.7mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: LED; 120W (Max. 10 lamps)

Maximum Current Rating: 1.1A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers, TRIAC dimmable loads or electric motors. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365005
